Description
The Zehnder ComfoValves Luna E extract air valve and Luna S supply air valve are suitable for installation in ceilings and walls. An intuitive assembly concept and an integrated rubber seal make air-tight installation of the valve easy. On Luna E, 75 rastered adjustment positions enable the air volume to be adjusted easily and very precisely without the need for tools. Using the 25 numbers on the control disc and 3 levels, the valve position can be read off and documented during commissioning in the documentation fields on the back of the valve. Once regulated, the valve can also be secured using the purpose-designed locking mechanism; this prevents the adjustment position from being modified inadvertently.
Due to the optimised outflow behaviour of the Luna S (Coanda effect), the valve meets the perfect requirements in terms of comfort and noise. The integrated rubber seal means the valve can be installed easily and achieves an air-tight fit. The valve can be adjusted for the required air volume using the “Flow Cone”, a restrictor unit with optimised flow, without requiring any tools; this saves time during installation and start-up. The air volume setting is secured using the lock specially developed for this purpose; the setting therefore cannot be modified inadvertently.
The valves protrude just 30mm even after adjustment of the volume flow settings.

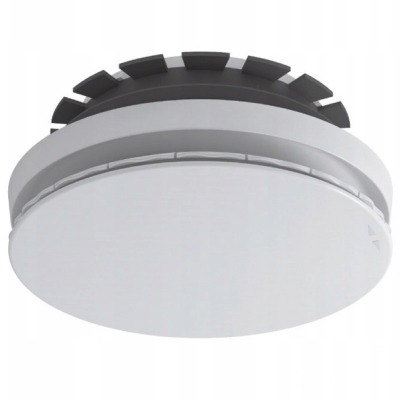

Zehnder ComfoValve Luna S supply air valve
- Optimised performance with air volumes up to 75m³/h
- Ventilation without draught (Coanda-Effect)
- 25 setting positions enable a wide range of air flow settings
- With the optional Zehnder Air Blocker the outflow angle can be reduced to 240°
Zehnder ComfoValve Luna E extract air valve
- Operating range for air volumes up to 75 m³/h
- Precise and easy adjustment thanks to the 75 rastered adjustment positions
- Easy documentation of the valve position during commissioning
- Locking mechanism of air flow settings prevents it being modified unintentionally
