ComfoWell 320

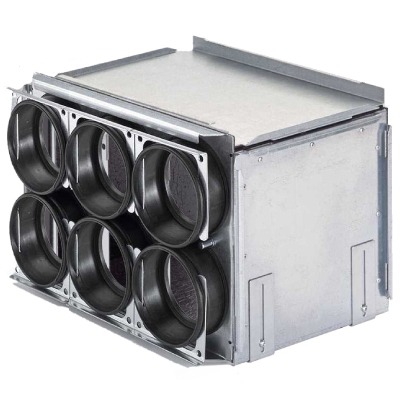

Zehnder comfowell 320 modular air manifold, attenuator and carbon filter system for up to 6x connectors for 75mm and 90mm semi-rigid ducts.Rigid pipe can be connected to the end plate securely by utilising the gasket seal connection. All other components are fitted using the RapidLock® connections to quickly form an air tight and robust seal by simply push-fitting the semi-rigid ductwork. Noise reduction can be improved by combining two attenuators together. Filters are available in ISO ePM1 (F9) grade in addition to an odour neutralising active carbon filter.
- Dimensions: W: 341mm; H: 233mm
- Recommended max. air volume: 66.6l/s (240 m³/h) at normal ventilation level
- Housing: Galvanised metal
- Fire rating to ISO13501
- Easy to assemble due to modular and compact design
- All connections with rubber gaskets, metal sliders for fixing ducting in place
- Attenuated inner lining: Closed-cell melamine resin foam (manifold box and attenuator)
- The mounting plate can be connected to the manifold box, or directly to the attenuator or the filter housing.
- The manifold box offers straight through or 90 degree (top or bottom and side) connections.
- The system can be directly connected with a Zehnder ComfoAir 160 and ComfoAir Q350 MVHR unit.
