Description

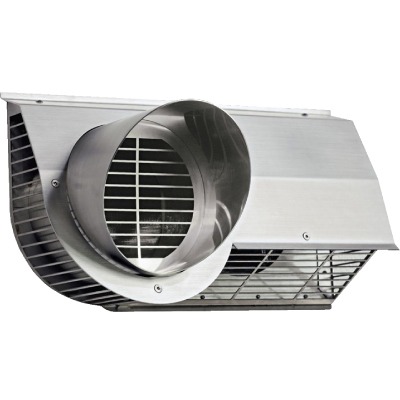

Stainless steel wall mounted grill combining intake and exhaust. For use with the Zehnder CA180 and Comfopipe Plus twin.
Connection through wall with 2 x 125mm diameter comfopipe. Left and right hand versions. Shown here SUPPLY is on the right so this is a right-hand version. The EXHAUST is the outward facing nozzle.
Because of the flow-optimised design, recirculation at the facade is less than 3% with nominal ventilation and a wind speed of 5 m/s.
| Size: H x W | 224 mm x 400mm |
| Distance spigots (centre-centre): | 164mm |
| Weight: | 2.1 kg |
| Max. air flow: | 120 m3/h (33 l/s) |
| Pressure drop exhaust: | 80 m3/h: 0.5 Pa |
| 120 m3/h: 0.7 Pa | |
| 180 m3/h: 1.0 Pa | |
| Pressure drop intake: | 80 m3/h: 2 Pa |
| 120 m3/h: 8 Pa | |
| 180 m3/h: 20 Pa |
