Steico Universal Dry

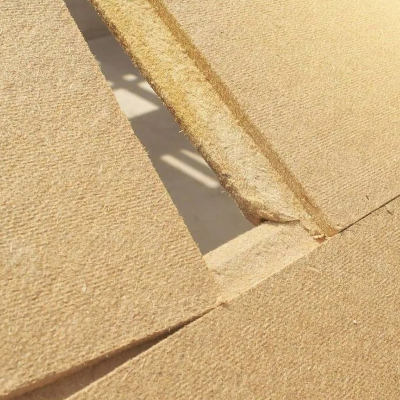

UNIVERSAL DRY INSTALL

Description

STEICO Universal Dry

Environmentally friendly insulation boards which are manufactured from natural wood fibres. Ideal in both sheathing and sarking applications. Has a single tongue and groove profile and a weather resistant coating to prevent deterioration during construction. Thermal conductivity of 0.043W/mK

APPLICATIONS

Combined sarking, sheathing and render board

Insulating sarking, sheathing and render board – high stability even with low board thicknesses

4-fold function: cold protection, rain protection, wind protection, render board

Can be used from 35 mm board thickness in conjunction with STEICO air-injected insulation

Particularly economical – just one type of board for roof constructions (from 1880 mm in length) and rendered façades (from 40 mm in thickness)

Particularly robust insulation board thanks to the high raw density

Diffusion-open for increased structural safety

Wood from responsible forestry – PEFC certified



Made in the EU

Produced and supervised according to EN 13171 and EN 13986
Board designationWF – EN 13171 – T4 – DS (70,-) 2 – CS (10 Y)100 –
TR30 – WS1,0 – AF100; EN 622-4 – SB.H – E1
Edge designSpecial tongue and groove profiles
Fire class according to EN 13501-1E
Declared thermal conductivity λD [ W / ( m*K )]0.046
Declared thermal resistance RD [( m2*K ) / W]0.45 / 0.50 / 0.70 / 1.05
Density [kg / m3]270
Water vapour diffusion resistance factor μ5
Sd value [m]0.11 / 0.12 / 0.18 / 0.26
Short-term water absorption [kg / m2]≤ 1,0
Specific heat capacity [J / (kg*K)]2100
Guaranteed compression strength at 10% deformation σ10 [N / mm2]0.20
Guaranteed compression strength [kPa]200
Tensile strength perpendicular to face ^ [kPa]≥ 30
Declared level of airflow resistance [( kPa*s ) / m2]≥ 100
Raw material – natural resinwood fibre, aluminium sulphate, paraffin, silicate,

waterproofing agents, bond between layers

Raw material – bitumen impregnatedwood fibre, bitumen, aluminium sulphate, paraffin,

waterproofing agents

Waste code (EAK)030105 / 170201

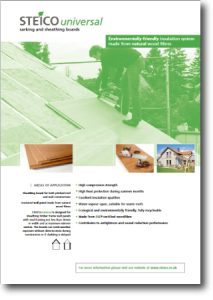

Steico Universal Data Sheet

UNIVERSAL DRY
Steico Universal Dry 1880x600x40mm t&g sheet covering 1.067m²
SKU: 100214
£14.31 ex VAT

In stock

UNIVERSAL DRY
Steico Universal Dry 1880x600x40mm t&g. pallet (of 100) covering 106.7m²
SKU: 100214P
£1,431.00 ex VAT

In stock

UNIVERSAL DRY
Steico Universal Dry 1880x600x60mm t&g sheet covering 1.067m²
SKU: 100214-216
£21.44 ex VAT

In stock

UNIVERSAL DRY
Steico Universal Dry 1880x600x60mm t&g. pallet (of 66) covering 74.45m²
SKU: 100214P-215
£1,415.04 ex VAT

In stock
