Spacetherm Multi A1

Spacetherm Multi A1

Description

Spacetherm Multi

High-performance laminate specifically designed to be laid directly onto existing floors & walls.

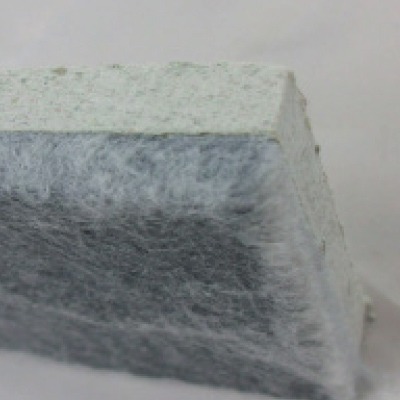

Spacetherm Multi consists of Spacetherm Aerogel insulation blanket bonded to a 6mm Magnesium Oxide Board. Spacetherm Aerogel blanket is available in various thickness from 10mm  to 40mm (in multiples of 10).

Spacetherm’s® insulation blanket has low environmental impact  with unrivalled thermal performance. Spacetherm’s® unique Aerogel insulation has been age tested to show that it retains it’s thermal performance for a period of 60 years.

The solution is ideal for use in applications where low U-values are required and room space is at a premium (such as loft conversions). Spacetherm Multi can achieve similar performance to other insulation systems, but at a fraction of the thickness. This allows specifiers greater flexibility and higher performance for refurbishment projects.

Benefits
• Thin insulation system for floors & walls
• Minimum loss of room space
• Can accept most floor coverings
• Moisture resistant
• One board – multiple applications



 ‘A solution best reserved for difficult to treat areas where space is at a premium. In retrofit it can be used to add insulation to window and door reveals but remember that when insulating internally measures should be taken to reduce the risk of interstatial condensation. Spacetherm is safe to use in this regard’

Delivery 3-5 working days.

Some sheets require double pallet size delivery.

Spacetherm Aerogel PropertiesTest MethodResult
Compressive Stress/StrainASTM C1658psi (55kPa) @ 10% Deflection
Density150 kg/m3
Dimensions1.2 x 1.2/2.4m
Reaction To FireEN13501-1:2007Class C-s1,d0
Specific Heat Capacity1 kJ/kgK
Thermal ConductivityEN126670.015 W/mk
Thickness5/10mm (or multiples)
Vapour ResistivityEN1257237 MNs/gm

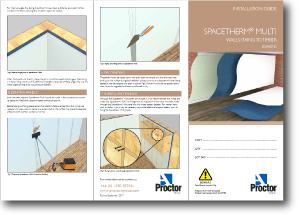

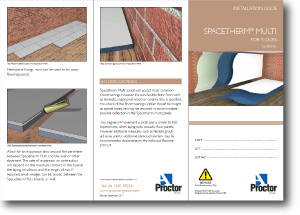

Spacetherm-Multi for floors installation guide   Spacetherm-Multi for walls installation guide

Spacetherm Multi A1 (floor) 1200 x 600mm 6mm Mag Ox + 10mm aerogel
Spacetherm Multi A1 (floor) 1200 x 600mm 6mm Mag Ox + 10mm aerogel
SKU: 1482A1
£82.56 ex VAT

In stock

Spacetherm Multi A1 (floor) 1200 x 600mm 6mm Mag Ox + 20mm aerogel
Spacetherm Multi A1 (floor) 1200 x 600mm 6mm Mag Ox + 20mm aerogel
SKU: 1484A1
£151.44 ex VAT

In stock

Spacetherm Multi A1 (floor) 1200 x 600mm 6mm Mag Ox + 30mm aerogel
Spacetherm Multi A1 (floor) 1200 x 600mm 6mm Mag Ox + 30mm aerogel
SKU: 1483A1
£220.42 ex VAT

In stock

Spacetherm Multi A1 (floor) 1200 x 600mm 6mm Mag Ox + 40mm aerogel
Spacetherm Multi A1 (floor) 1200 x 600mm 6mm Mag Ox + 40mm aerogel
SKU: 1481A1
£289.42 ex VAT

In stock

Spacetherm Multi A1 (wall) 1200 x 2400mm 6mm Mag Ox + 10mm aerogel
Spacetherm Multi A1 (wall) 1200 x 2400mm 6mm Mag Ox + 10mm aerogel
SKU: 1482WA1
£330.23 ex VAT

In stock

Spacetherm Multi A1 (wall) 1200 x 2400mm 6mm Mag Ox + 20mm aerogel
Spacetherm Multi A1 (wall) 1200 x 2400mm 6mm Mag Ox + 20mm aerogel
SKU: 1484WA1
£605.77 ex VAT

In stock

Spacetherm Multi A1 (wall) 1200 x 2400mm 6mm Mag Ox + 30mm aerogel
Spacetherm Multi A1 (wall) 1200 x 2400mm 6mm Mag Ox + 30mm aerogel
SKU: 1483WA1
£881.68 ex VAT

In stock

Spacetherm Multi A1 (wall) 1200 x 2400mm 6mm Mag Ox + 40mm aerogel
Spacetherm Multi A1 (wall) 1200 x 2400mm 6mm Mag Ox + 40mm aerogel
SKU: 1481WA1
£1,157.69 ex VAT

In stock
