Description

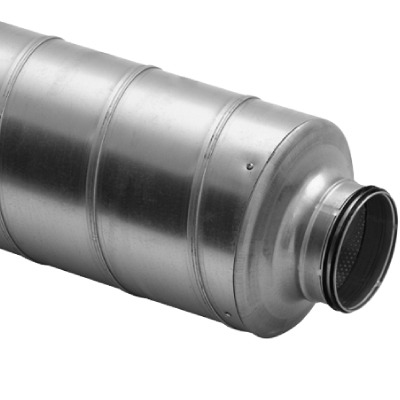

SLXU 50

Tecsound circular, spigoted, straight silencer with nominal insulation thicknesses of 50 mm

Attenuation material is glass wool. The SLXU’s are made of strong outer spiral seamed tube and an inner tube made of sheet steel with small openings to be able to withstand mechanical cleaning and at the same time not interfere with the insertion loss. The space between them is filled with glass wool and a nonwoven cloth is inserted between inner tube and the attenuation material, to prevent fibres from the insulation getting into the duct system. Silencer can be cleaned by rotating nylon brushes, vacuum cleaner or damp cloth.

Suitable for temperatures up to 200°C and a maximum pressure of 1500Pa.
