Description

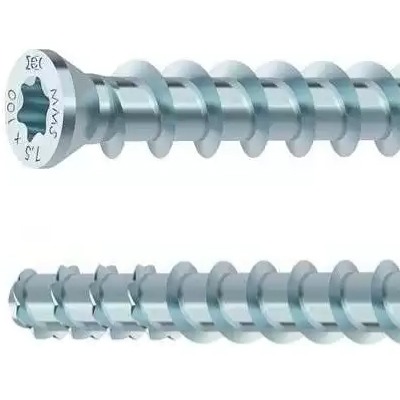

Multi-Monti MMS-TC
The baseplate anchor MULTI-MONTI-TimberConnect (MMS-TC) is based on the well-known MULTI-MONTI anchor system for securing components directly in concrete, stone or masonry surfaces.
It combines the concrete thread of the MULTI-MONTI with a wood thread. This combination is not only unique, it’s also revolutionary! Wooden elements, particularly joists, can now be secured in concrete quickly and easily. The screw anchor is driven in with an electric screwdriver or drill after drilling a through-hole. This allows the small head to be countersunk in the wood. This means that only one screw anchor is necessary, regardless of the width of the wood.
The advantages at a glance:
- Ideal for securing wood components on solid masonry and concrete
- Transmission of high tensile and shear forces without any additional construction measures
- The MMS-TC can be countersunk in the wood, so a single length covers a large number of wood thicknesses
- Small drill-hole diameter
- Simple installation with the appropriate insertion tool
- Insertion with electric screwdriver/drill
- National technical approvals for connections to concrete Z-21.1-1879
| Size | Drive size | Fixture thickness | Drill size masonry | Box Qty |
| 7.5 x 100 | T30 | >40 | 6 | 50 |
| 10.0 x 130 | T45 | >60 | 8 | 25 |
| 12.0 x 160 | T50 | >80 | 10 | 25 |
