Description

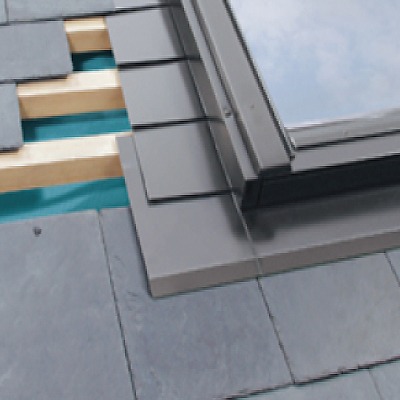

The ELV-T Thermo is a flashing for slate roofs. It is applied as standard to individual windows in the slope of the roof. The flashing may also be used as module flashing for windows used in horizontal and vertical combinations or block groups.
ELV-T Thermo is available for installation of windows at a depth V (0cm), on roofs with pitches between 15° and 90°.
The flashing is 22mm wider than standard and is made of four basic elements (bottom element, two sides elements and top element), each profiled with insulation material. In the set, are included proper width side covering profiles. The lower element has a long, wide aluminium plastic apron with an adhesive PVC fillet adhered to the underside. This allows the flashing to be adhered to the roof covering for a perfect fit. The flashing is equipped with side sealing channels to protect against wind blown dust, leaves, rain and snow. Also in the set there is a weep flap to allow condensation to drain away from the window.
* For tiled and profiled roofs up to 90mm profile depth use the EHV-AT Thermo flashing
