Description

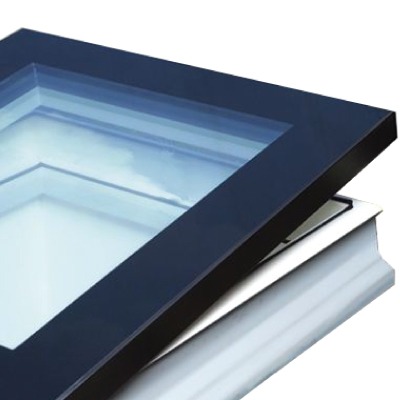

Manually operated flat flat roof window with triple glazed U6 unit which is bonded using modern manufacturing technologies to produce a highly aesthetic and innovative design.
The external glass 6mm thick is toughened while the internal glass is laminated and anti-burglary P2A class. Should the pane crack, shards of glass do not pose a danger but remain on the laminate film. Heat transmittance co-efficient for the whole window is U=0.88 W/m2K (to EN 12567-2). The window is also available to order with a quadruple U8 glazing unit. Heat transmittance co-efficient for the whole D_F DU8 window is U=0.76 W/m2K (to EN 12567-2). Such excellent parameters make the window suitable for use in energy-efficient and passive buildings.
Type DMF
Manual opening using ZSD universal telescopic rod (sold separately)
Also available as fixed [DXF], walk-on [DXW] and electrically operated [DEF]

EGA= Effective Glass Area
